Product Overview
Features & Highlights
- Utilizes Perfect Pivot, a patented and frictionless mechanism that exactly mirrors your natural body movement
- Contoured back provides support and flexes sideways- twisting when you twist
- Translucent poly backs present a unique high-design option
- Available with and without arms, black or aluminum base and with poly or upholstered seat and back
Dimensions
Construction
- Injection-molded polypropylene back, seat and shroud
- Outer backrest supports formed from 1” diameter tubular steel are inserted into sockets molded into backrest and allow for 15 degrees of movement

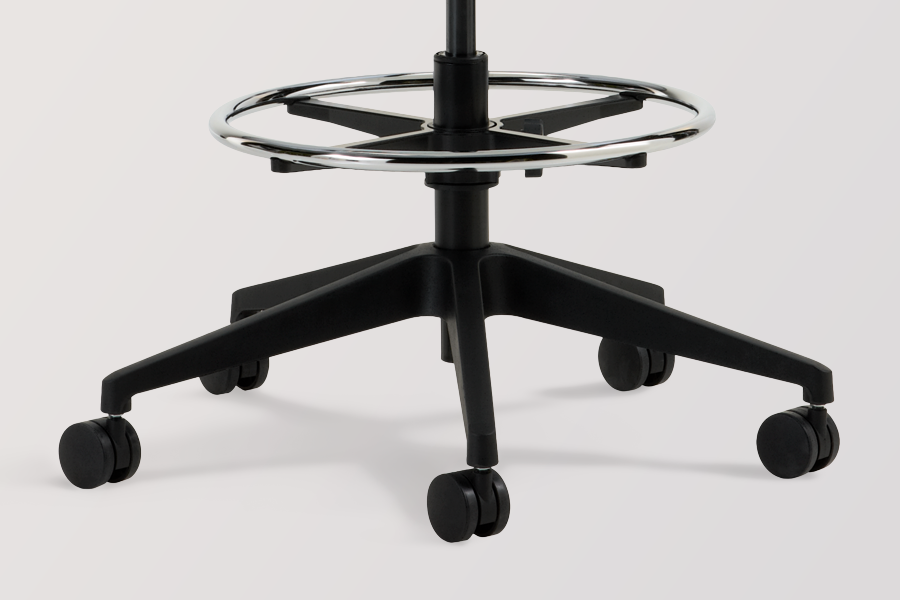

- Base is 26” injection-molded glass-reinforced nylon 5-blade base
- Casters are double-wheel high-impact thermoplastic
- Stools include adjustable-height 18” diameter chrome plated steel foot ring
Videos & Photos
View Approved Fabrics & Finishes
Select a style to view available options
Product Story
The Grazie® Collection features the world's first true ergonomic stack chair. Designed by Giancarlo Piretti, Grazie's Perfect Pivot™ is a patented frictionless mechanism that exactly mirrors natural body movement to provide the ultimate in sitting comfort. Artful and timeless, Grazie's gracefully sculpted design and ingenious function blend beautifully in any environment. Backrest assembly moves over molded slide bushings and is supported by steel coil springs. This mechanism allows the backrest to move 15 degrees about an axis of rotation that is through the hips of the sitter. Injection-molded polypropylene shells and seat liner board. 12-gauge steel underseat structure. Optional upholstery over 1" thick seat foam and ½" thick back foam. Injection-molded glass-reinforced nylon 5-blade base.
Designer Profile
DESIGNER
Giancarlo Piretti
Giancarlo Piretti (Bologna, Italy, 1940) is an Industrial Designer. Among his successful designs are Plia folding chair, his best-seller exhibited at Moma NY, Platone folding desk, and DSC (106-AXIS) seating system. For Vertebra chairs he obtained the Compasso d'Oro (Italy) as well as for his largest project, Piretti Collection office & institutional seating system. Other designs include Xylon wooden chairs, Torsion collection of institutional chairs; Engage & Impulse office chair lines featured by a synchro tilt mechanism Piretti developed; #18000 nesting & stacking chairs; and the Strive chair collection. The Pirouette nesting table and Grazie and Doni chairs for KI U.S. are G. Piretti's latest designs.
