Product Overview
Features & Highlights
- Simple, highly adaptable architectural wall solution
- Fully assembled in our manufacturing facility to guarantee timely installation and leaving virtually no waste, saving you valuable time, money and environmental resources
- Offers stunning storefront applications with a timeless beauty that visually unifies architecure and furniture
- Seamless connections maximize natural lighting for brighter, more attractive spaces
- Can be specified with unlimited runs of butt-glazed glass, removing the need for unsightly vertical posts
- Easily integrates with KI's Evoke and Genius walls and other architectural elements
- Door offerings include sliding or pivot options in glass, wood or framed aluminum
- Corners require no reinforcement
- Designed with a minimal kit of parts, which makes them easy to move or reconfigure when needed
Construction
- Butt-glazed glass panel width ranges from 12" to 48"
- Ceiling heights up to 120"
- Standard frame depth is 2.25" overall
- Sliding and pivot-hinged door units are standard
- Sliding doors available with soft stop (self-close) and soft open options
- Full height of doors is up to 120", frameless glass up to 9'
- Door leaf options include solid core, framless safety glass, stile/rail-glazed options, and aluminum framed
- SCS Indoor Advantage™ Gold Certified for Indoor Air Quality
- Butt-glazed glass is 1/2" (12mm) clear tempered
- Patterned glass film options are field applied

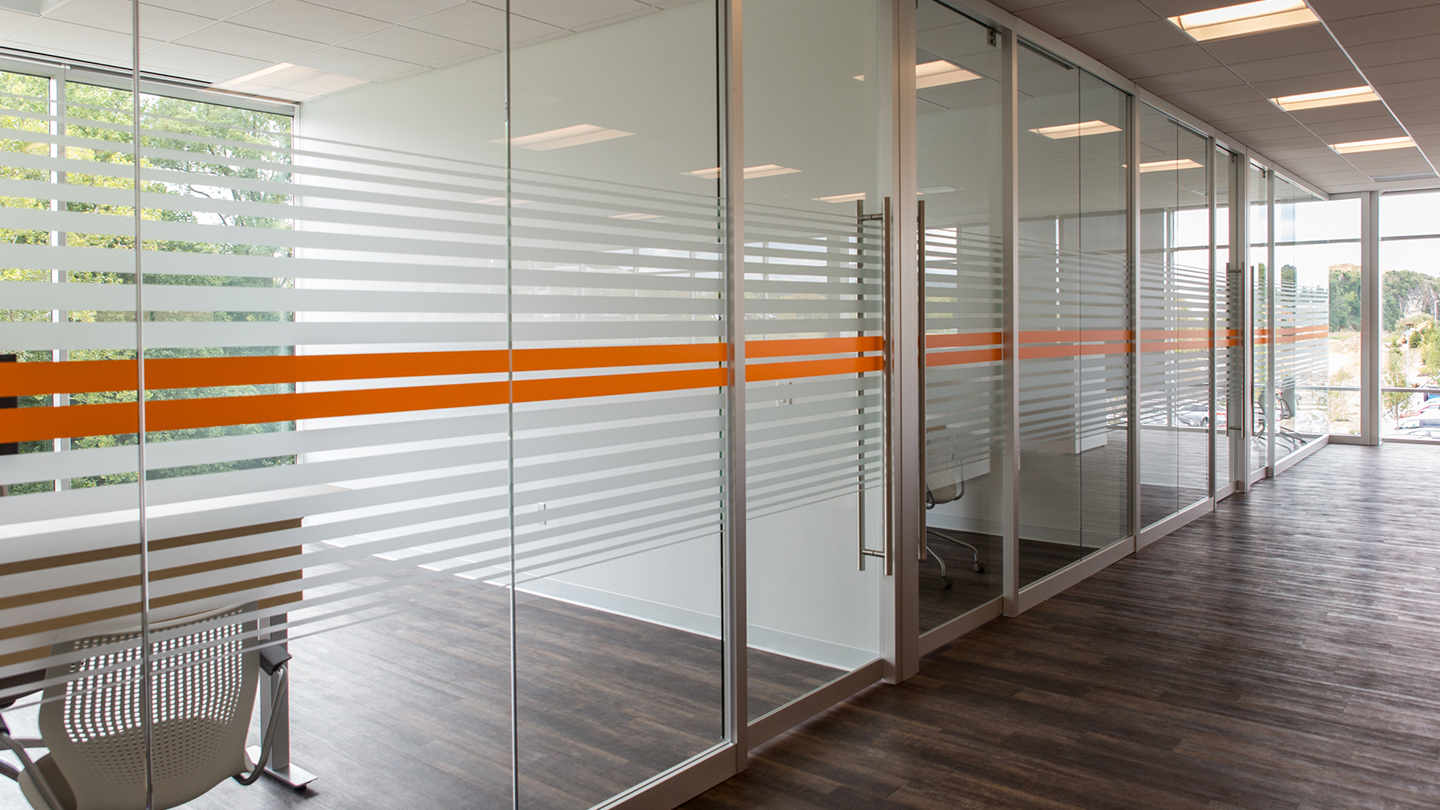

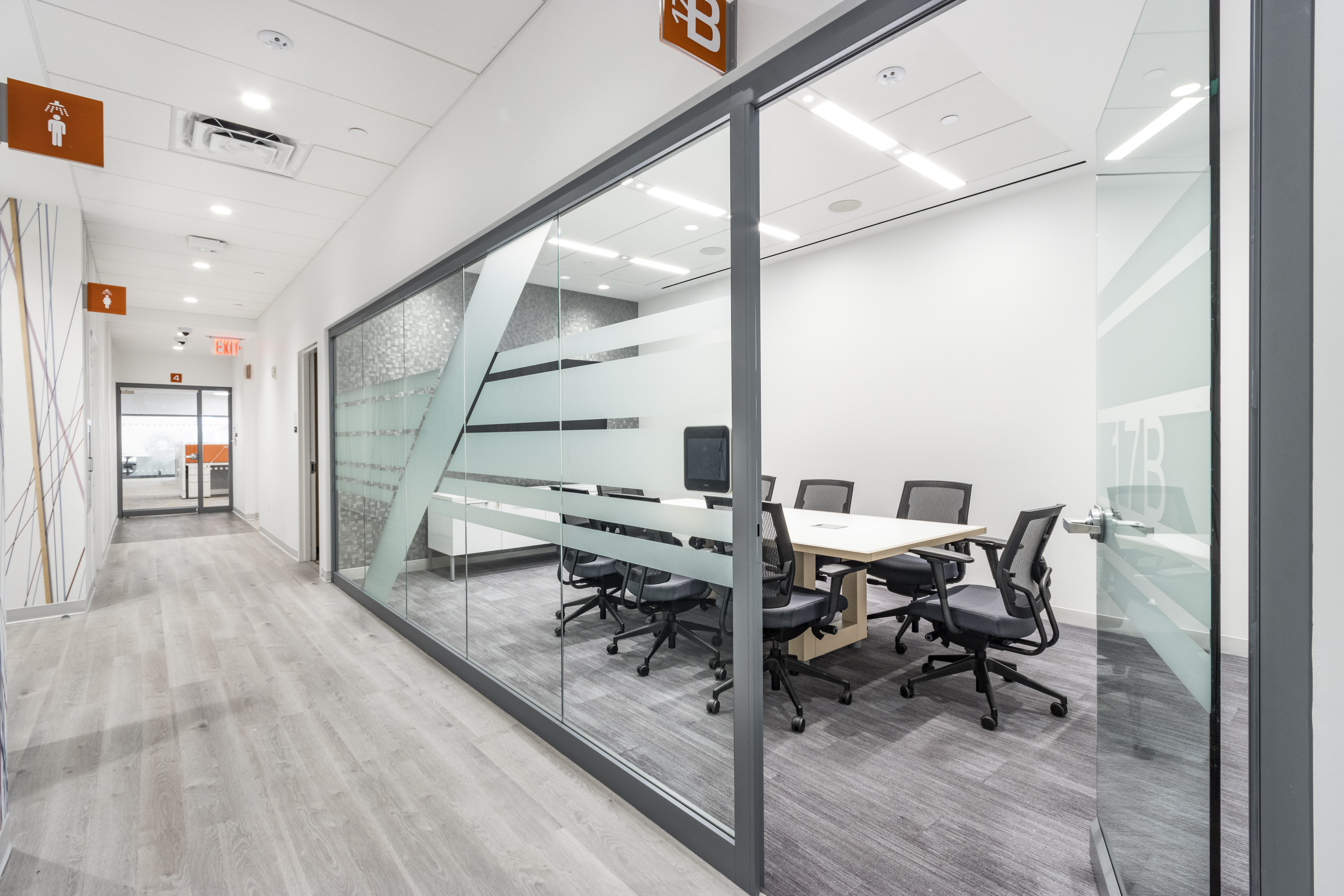

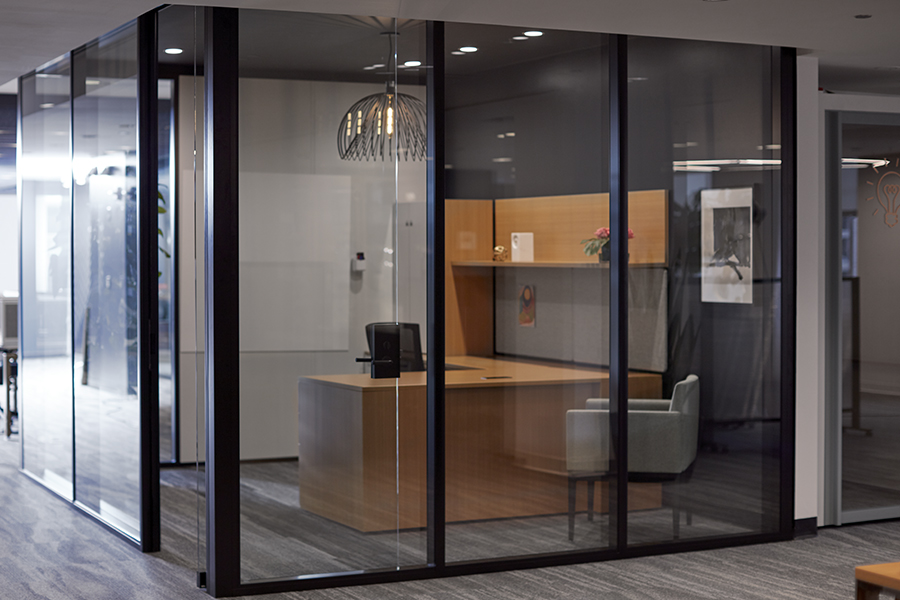

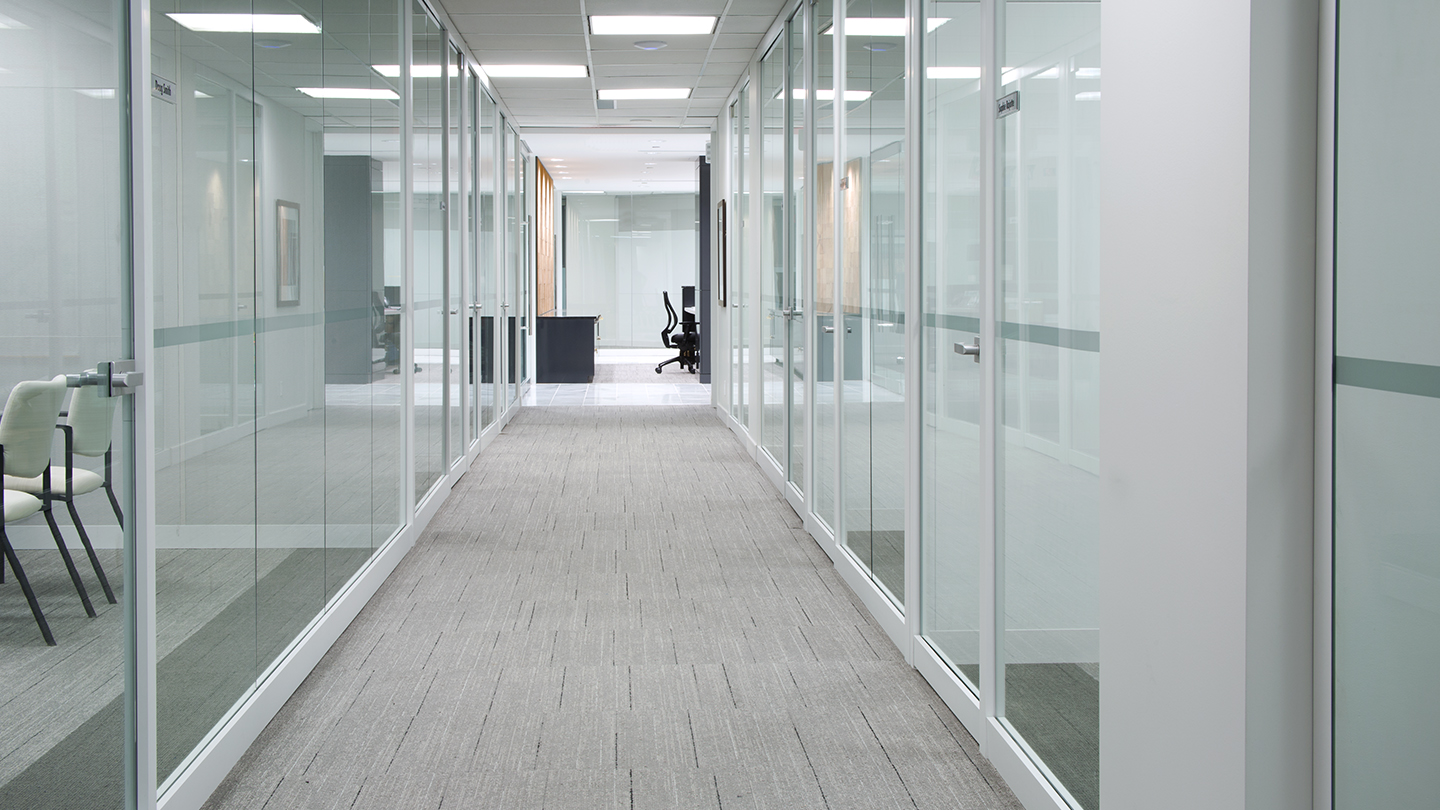

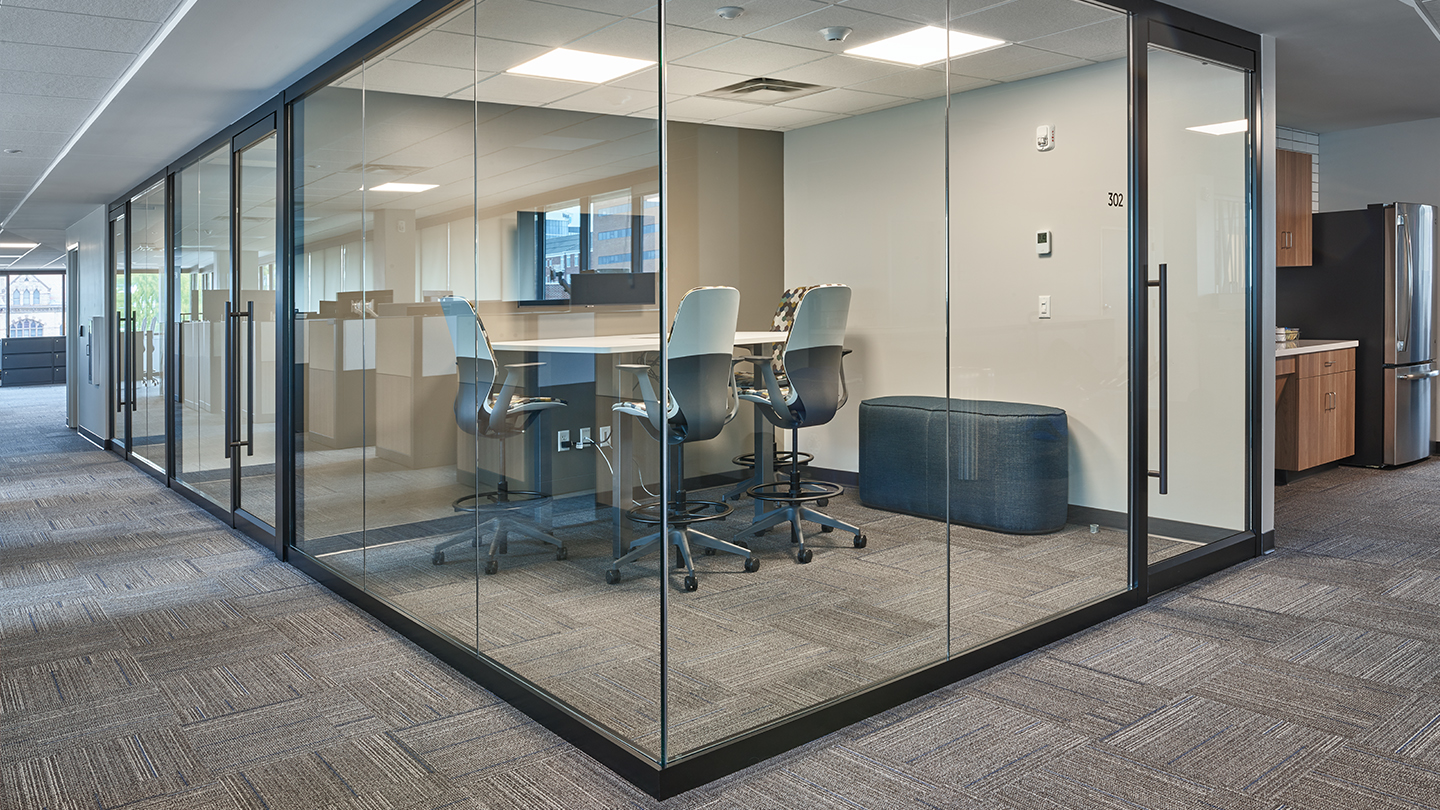

Photos
Photos
Standard Finishes
Slight variations occur in texture, color, grain configurations and finish acceptance of materials used. Therefore, finished pieces may vary in tone or character from these images. Please order a sample from your KI sales representative for a more accurate representation of the finished piece.
Click here to view the Glass Finish Card.
1/4" Clear Tempered
1/4" Low Iron Clear Tempered
1/4" Clear Laminate
1/4" White Laminate
1/4" Light Satin Etch
1/4" Velour Satin Etch (1-Side)- 1/4" Velour Satin Etch (2-Sides)
3/8" Clear Tempered
3/8" Clear Laminate
3/8" White Laminate
1/2" Clear Tempered
1/2" Low Iron Clear Tempered
1/2" Clear Laminate w/ .030 Interlayer
1/2" Clear Laminate w/ .03 Acoustic Interlayer
1/2" Low Iron Clear Laminate w/ .030 Interlayer
Click here to view the Wood Veneer Finishes Card.
Anigre Clear
Cherry Storm on Beech
Cinnamon on Beech
Cocoa on Beech
Ebony Clear
Eclypse Black
Makore Clear
Monticello Maple on Beech
Natural on Beech
River Cherry on Beech
Zebrawood Clear
Cherry Storm on Maple
Cinnamon on Maple
Cocoa on Maple
Kensington Maple on Maple
Monticello Maple on Maple
River Cherry on Maple
Brighton Walnut on Oak
Castle Oak on Oak
Cinnamon on Oak
Cocoa on Oak
Medium on Oak
River Cherry on Oak
Natural on Walnut
Click here to view Architectural Wall Shells & Trim Card.
Birch Bark
Biscotti
Biscotti Textured
Black Pearl Metallic
Bronze Metallic
Bronze Metallic Textured
Calm Before the Storm
Calm Before the Storm Textured
Cashmere
Champagne Metallic
Cool Grey
Cottonwood
Cottonwood Textured
Creamy White
Cultured Pearl
Eclipse
Eclipse Textured
Espresso Metallic
Flannel
Flannel Textured
Full Moon
Light Tone
Light Tone Textured
Misty Brown
Neutral Ground
Neutral Ground Textured
Sand
Sand Textured
Satin Sheet
Satin Sheet Textured
Starlight Silver Metallic
Steel Wool
Steel Wool Textured
Warm Grey
Warm Grey Textured
Wet Sand
Wet Sand Textured
Black
Clear Anodized Aluminum
Silver Anodized Aluminum
Product Story
Lightline is a pre-assembled, unitized glass wall system dedicated to the enhancement of light. Its seamless connections maximize natural light for brighter, more efficient spaces while providing visual unification between architecture and furniture. Unlimited butt-glazing lets you design spaces with no visual breaks, because Lightline doesn't require vertical posts. And its thinner, smaller rectilinear profiles go practically unnoticed.

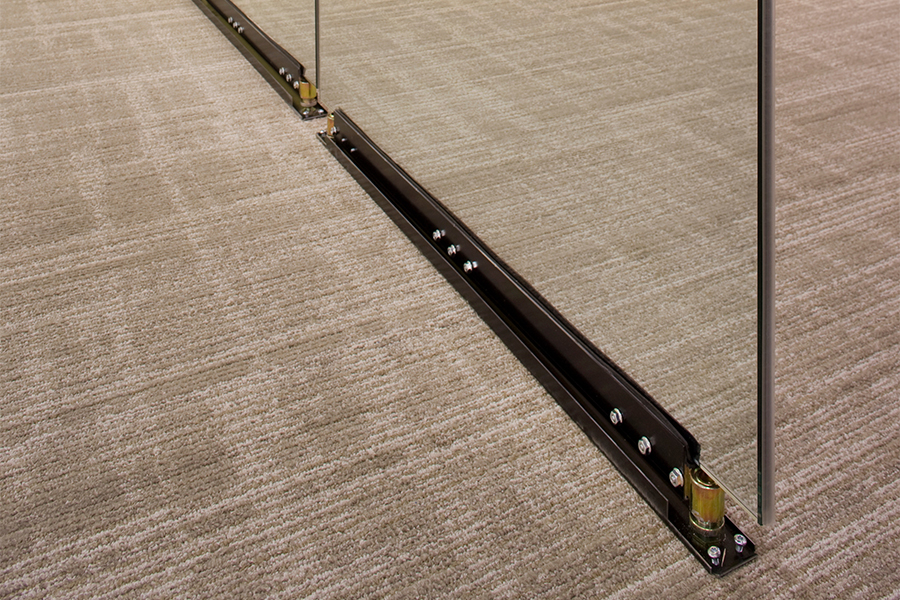

Lightline architectural wall features pre-assembled construction with ½"-thick glass, seamless glass joints, passive top and bottom channels, and beautifully designed hardware, including full-height sliding glass door mechanisms. The thicker glass provides superior rigidity and sound attenuation. Glass edges are flat polished and chamfered to a precise angle, forming a virtually seamless fit when combined with the dry joint.
Versatile and adaptable, Lightline architectural wall easily integrates with permanent construction, existing architecture and KI's Evoke and Genius architectural wall. Lightline is the only fully unitized storefront solution that can be easily moved and reconfigured without waste and with minimal labor. Numerous design options and features include:
- Ceiling heights to 120" and widths to 48"
- ½"-thick glass and factory assembled butt-glazing
- Panel thickness of only 2.25" at the base
- Sleek visuals with rectilinear profiles
- Maximum flexibility and reusability with a large range of adjustment to both base and ceiling areas
- Versatile door offerings include sliding or hinged
- Glass corners or 3-way connections included as standard options
- 10-year warranty
